Data Model Definitions

Data Model: A consistent way of defining and representing real world entities or phenomena in a GIS.

Data models are also referred to as "data types".

Two Primary Types of Data Models

There are two types of data models that you will use regularly within a GIS:

1. Vector (points, lines, and polygons)
2. Raster (made up of "pixels")

The graphic below shows that we are always representing the "real world". Vector and raster data models represent the real world in different ways. Each has it's advantages.

Vector Data Model

Vector data is the most common type of data and you've already created your own vector data.

A parcel map of Arcata, California loaded into ArcMap.

Types of Vector Data

• Points:
  • One pair of coordinates defines the location of a point feature.
  • Individual X,Y
• Polylines (LineStrings):
  • Two or more pairs of coordinates that are connected define a line feature.
  • A series of connected points - Actually, a set of series of connected points.
• Polygons:
  • Multiple pairs of coordinates that are connected and closed define a polygon feature.
  • A series of connected points that loop back to the first point
    • Multiple "polygons" can exist in one layer
    • Polygons can have internal polygons or "holes"
    • The beginning and ending coordinates for a polygon are the same.



Raster Data Model

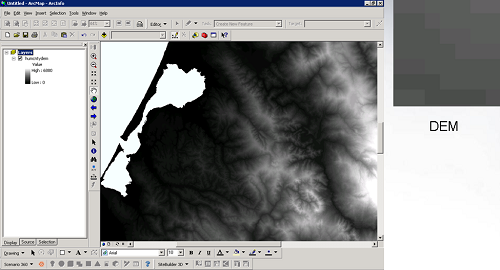

Raster data models cover an area with a uniform grid of points. Raster data is basically the same data that you have when you take a picture. In GIS, these "pictures" just referenced to the earth. In GIS, we can represent a large variety of information in rasters. Below is a "Digital Elevation Model" or "DEM". In a DEM, each pixel contains a number that is the approximate average elevation for the area covered by the pixel. The image on the right shows a zoomed in section of the raster showing that the pixels appear square to us.

Raster showing the elevations of the land around Humboldt Bay
